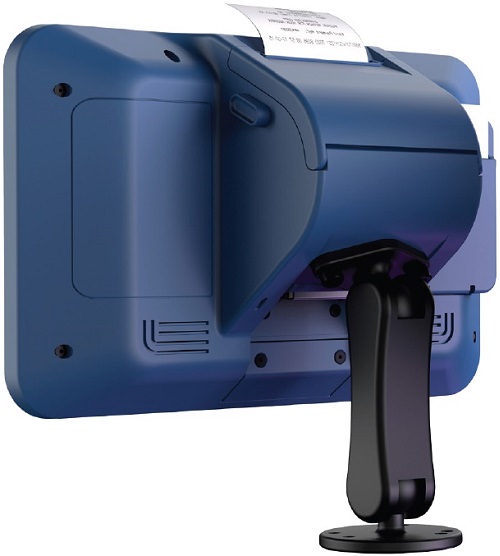

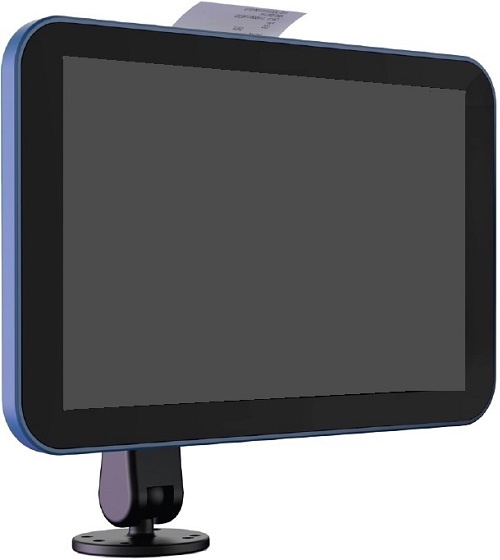

ON-BOARD COMPUTER SYSTEM

The on-board vehicle computer system is the base unit for the driver. It is a very reliably and state-of-the-art system and is made specific for vehicle environments. It can be installed at the driver’s working place easily. The minimum necessary interfaces consist of a power line and a roof antenna for the data communication via GPRS/UMTS/HSPA and GPS for real-time vehicle location information. If desired the vehicle computer can be interfaced to third party systems like destination displays, stop announcement displays, voice announcement systems or validators for ticketing. The vehicle computer can be used as well stationary at customer service centres, sales outlets or kiosk locations.

Here an excerpt of the business processes we assist:

Automatic Fare Collection (AFC) / Ticketing
 - Paper ticket sales based on various tariff models.
 - Smart card based ticket sales based on various tariff models.
 - Checking the validity of smart card tickets including block-list support.
 - Smart card ticket extension or add-value processes.
 - Shift accounting for drivers or kiosk staff.
 - Interface to a separate smart card validator with barcode imager option.

Intermodal Transport Control System (ITCS)
 - Tracking and tracing function (AVL, based by GPS and Gyro-sensor).
 - Show lines, stops and punctuality to the driver.
 - Text message communication between the vehicles and the dispatcher.
 - IBIS-Master-Functionality to administrate vehicle internal display systems.
 - Interface to vehicle internal announcement systems.
 - Interface to voice communications systems.

Real-time Passenger Information (RTPI)
 - Interface to vehicle internal Real-time Passenger Information.
 - Interface to vehicle stationary Real-time Passenger Information systems.

Additional
 - Central data server for third-party systems (eg. infotainment systems).
 - Diagnosis functions for the vehicle computer and other vehicle devices.
 - Different functions depending on user groups (driver, kiosk staff, workshop).
 - Different functions depending on locations (vehicle, sales office, kiosk).
 - Fully automatic data transfer (Download, Upload).


Multiapplication

Our softwaredesign allows the easy integration of third party applications.

Model FSD6 : Technical Specification

Following some technical specification details, which can vary project-specific:

• ARM i.MX6 pro industrial processor with real-time clock; operating system Embedded Linux; memory SRAM up to 4 GB, Flash, SSD up to 64 GB
• Driver touch-screen TFT-display screen size 10,4 Inch, resolution 800*600 Pixel, 256.000 colours, brightness 500 cd/m², durably glass surface (Mohs 7) with brightness sensor; customer display 320*240 pixel.
• Contact-less smart card reader with four SAM-slots, four coloured indication lights and a RGB-colour lightning smart card reader area.
  1D and 2D barcode imager.
• Full-graphic thermo-printer with Easy-Load-System; printing speed up to 250 mm/sec, automatic paper cutter; paper level, paper end and paper jam detection by optical sensors; software controlled, lockable paper box.
• Electrical interfaces: Power, IBIS (interface to inside and outside displays), serial, USB, Ethernet, CAN, digital I/O (ignition, door criteria …), interface for three antennas (GPRS/UMTS/HSPA, GPS, WiFi).
• Communication interfaces: GPRS/UMTS/HSPA/LTE/5G communication; GPS with gyro-sensor for vehicle tracking; option Wi-Fi communication.
• Key-lockable device mounting cradle with electronic vehicle memory. All interfaces connected via one common 59-pin plug to the vehicle.
• Housing dimensions 124*237*367mm (H/W/D); display 217*271mm; weight 4,8 kg; operating environment -25°C to +75°C; water / dust protection IP54; E (Automotive).

-> Specification Download
